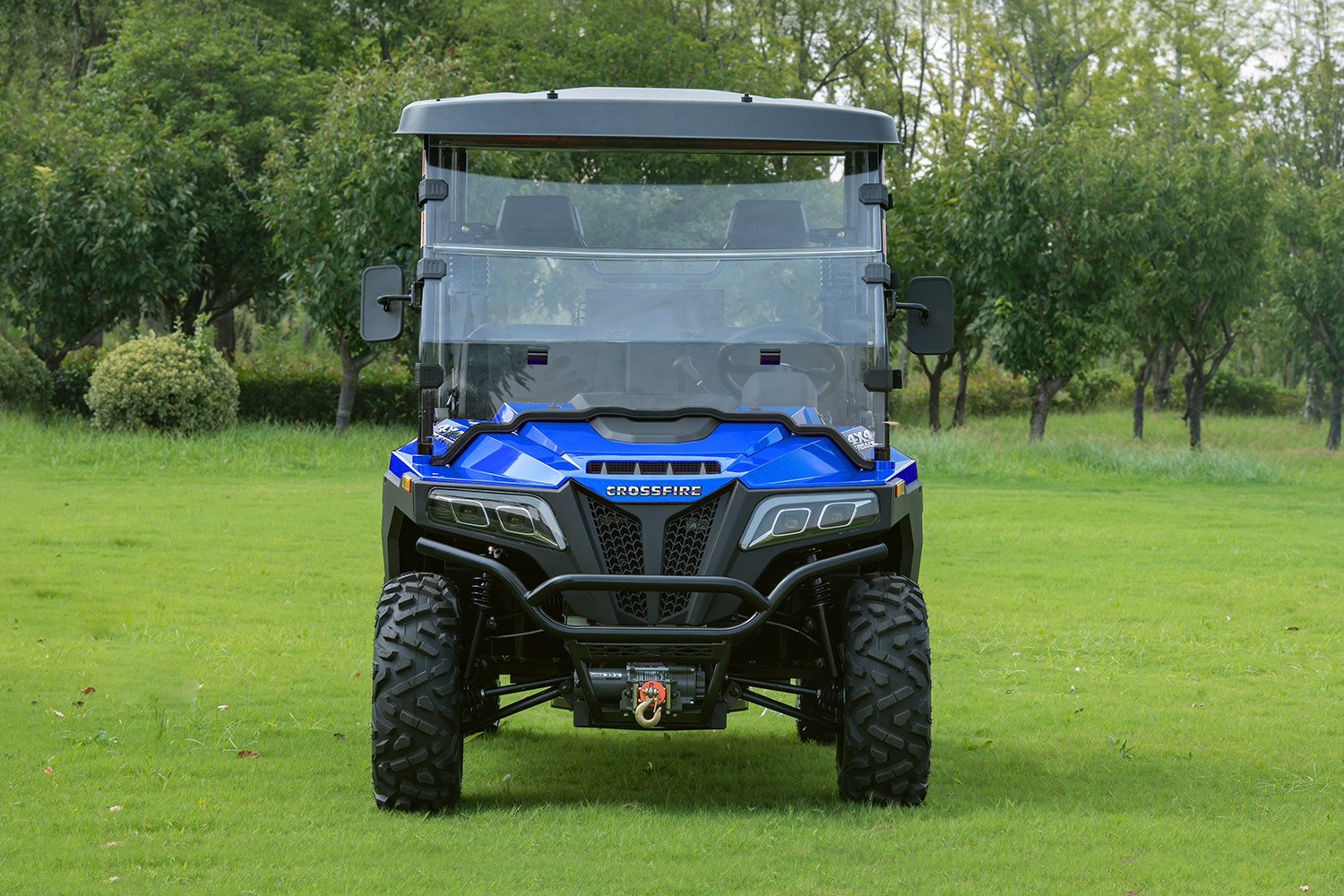

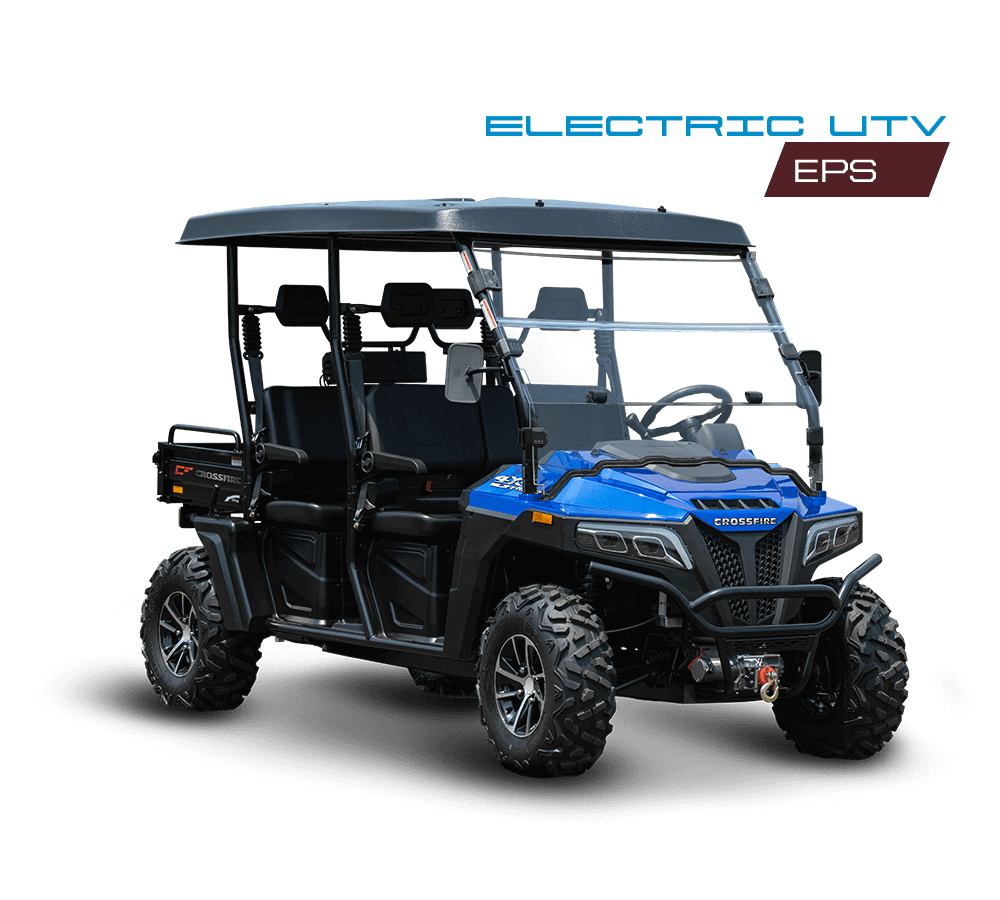

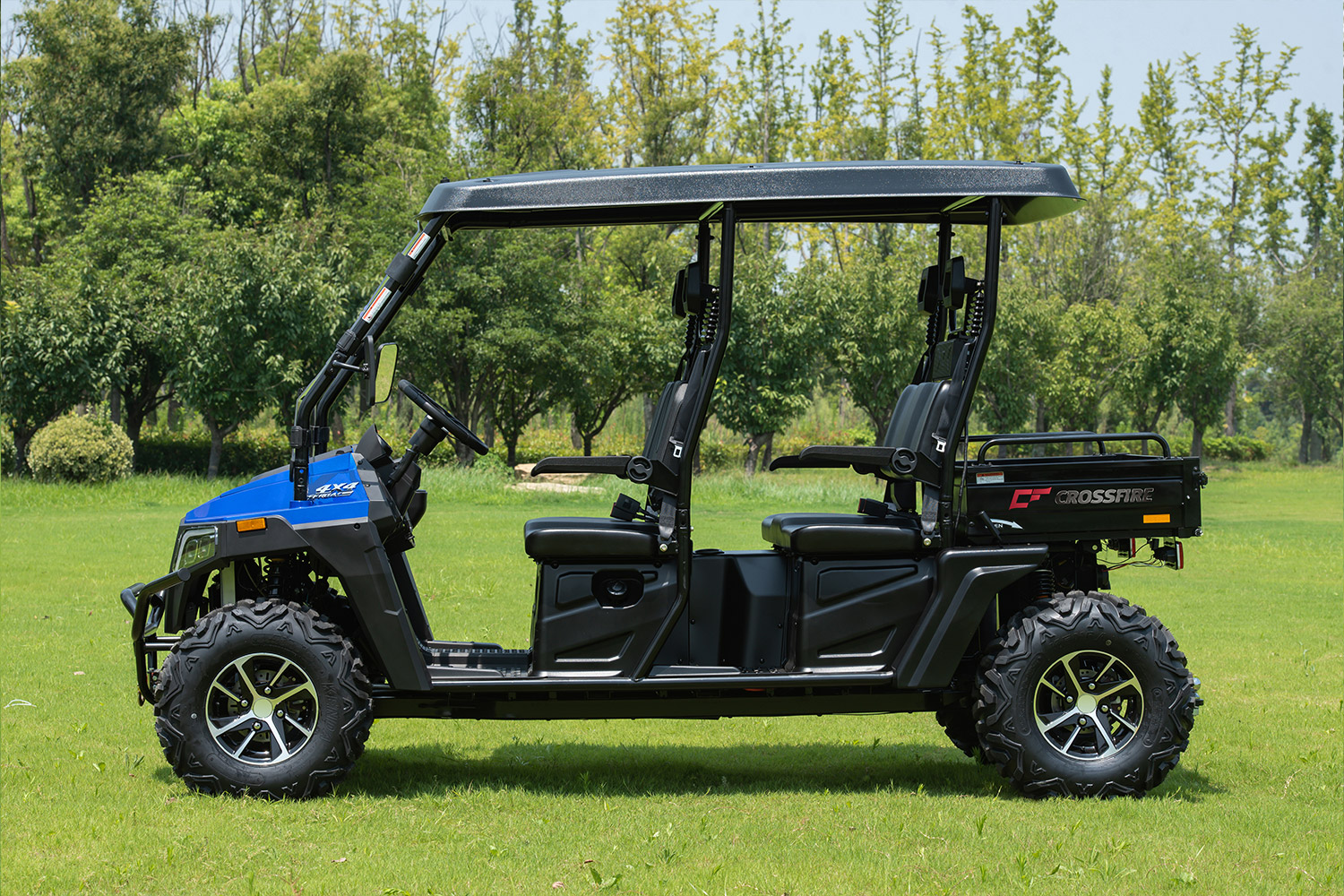

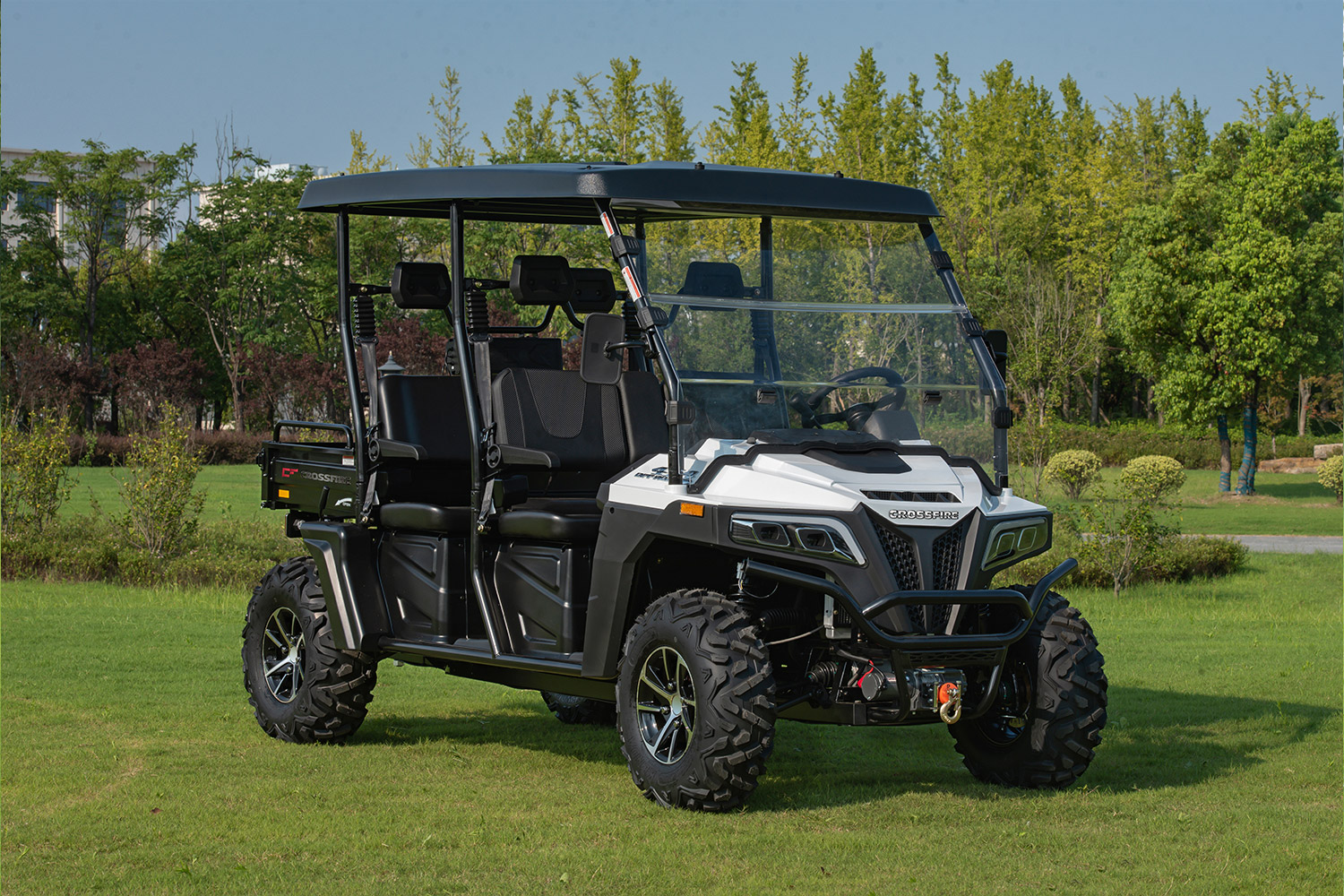

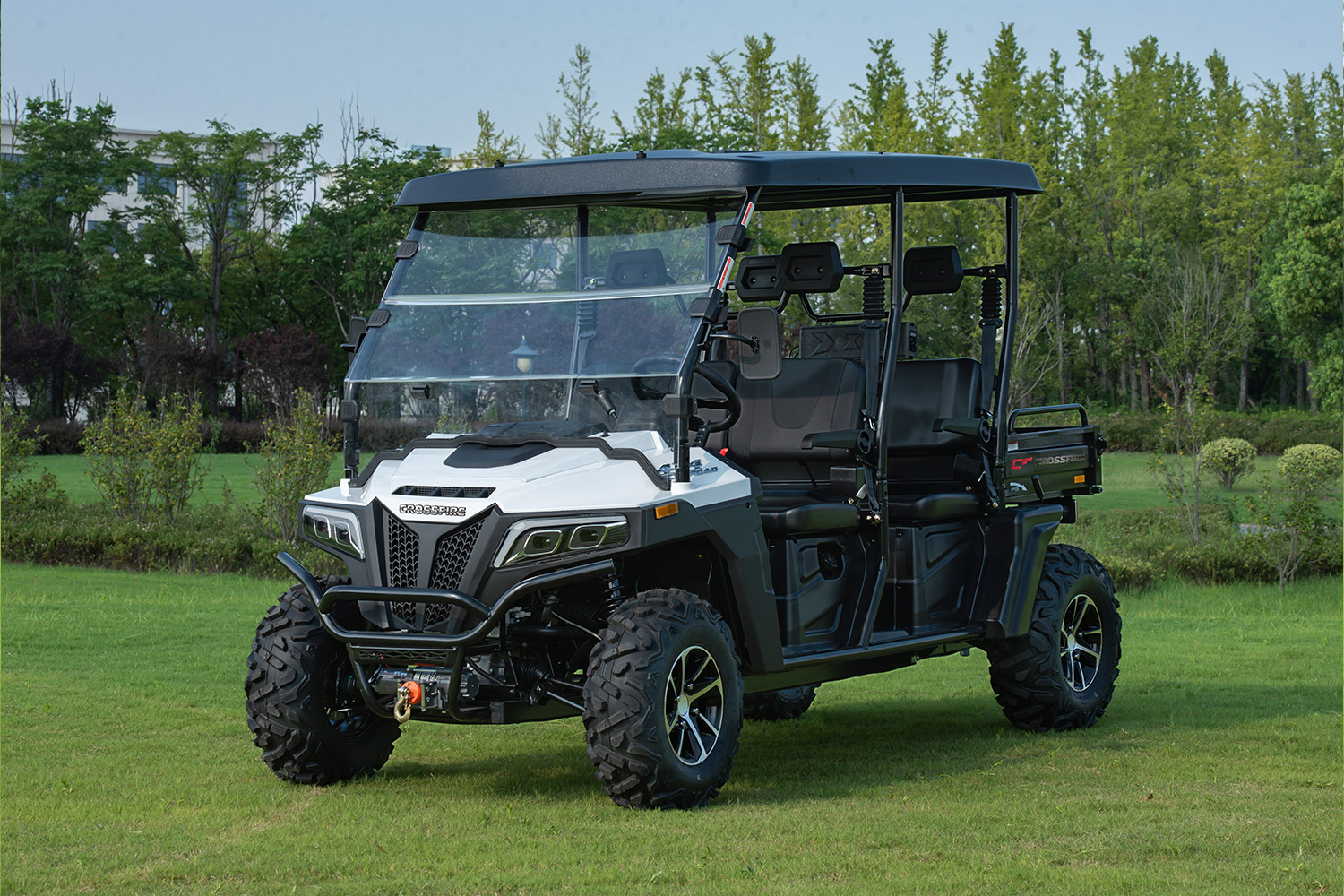

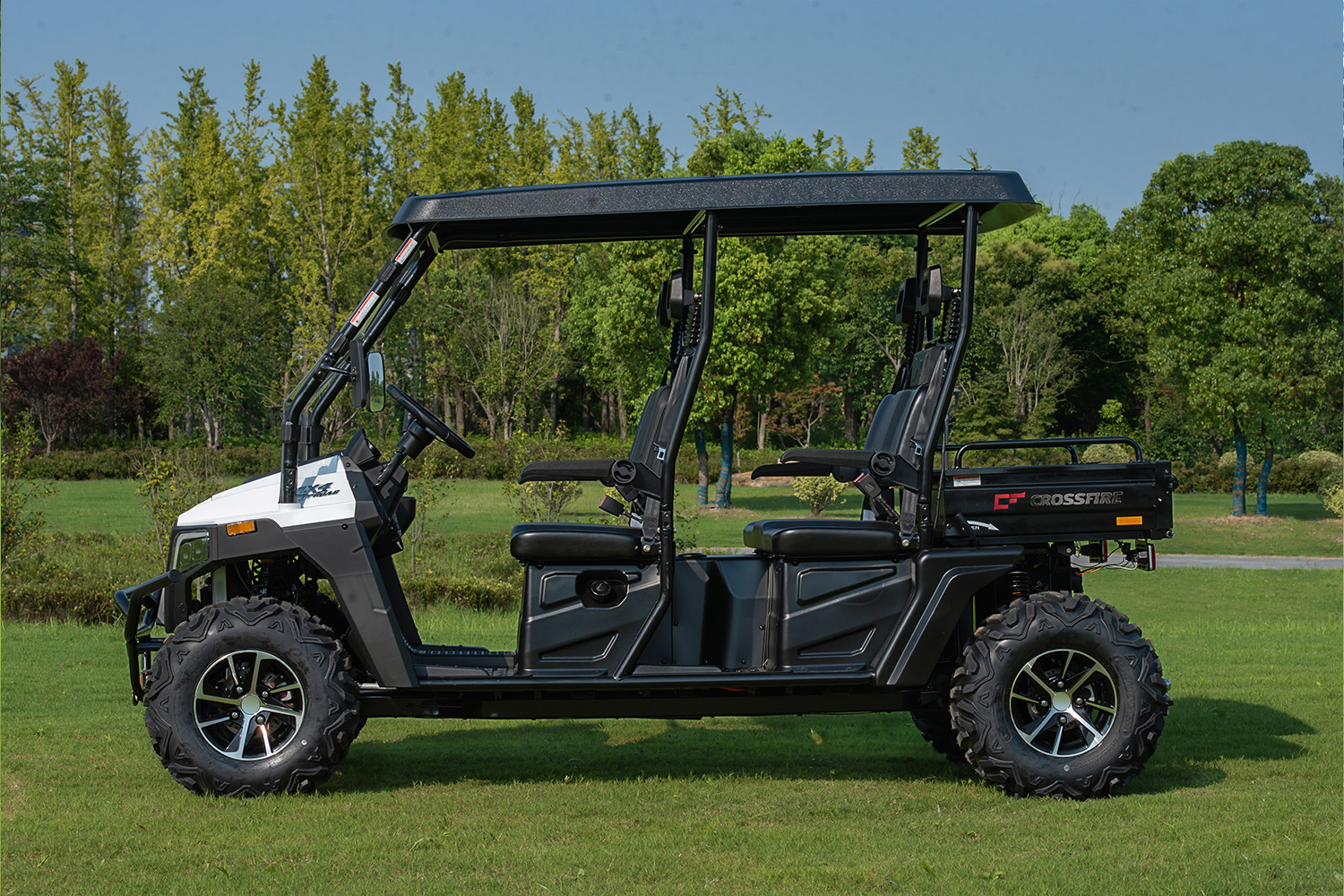

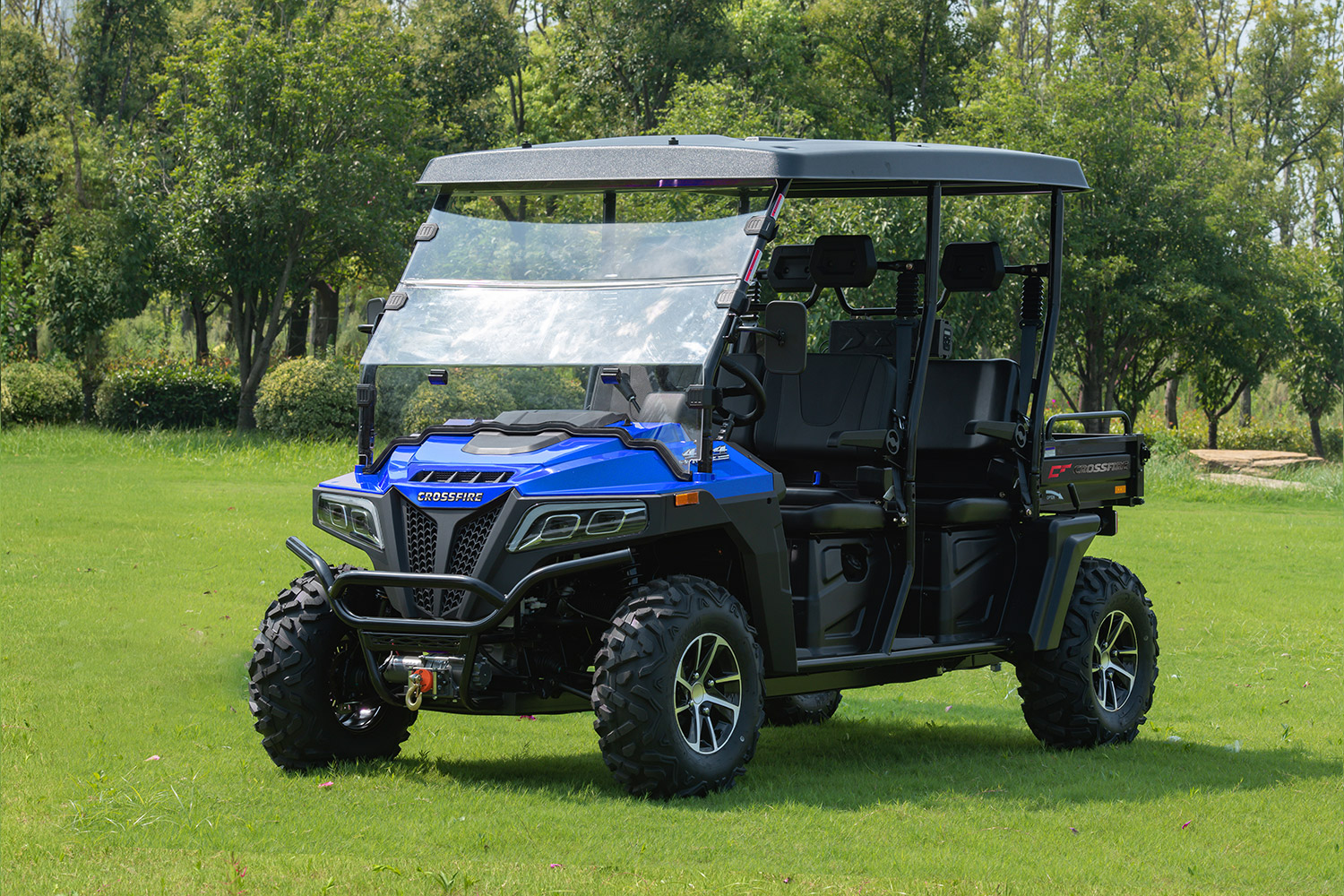

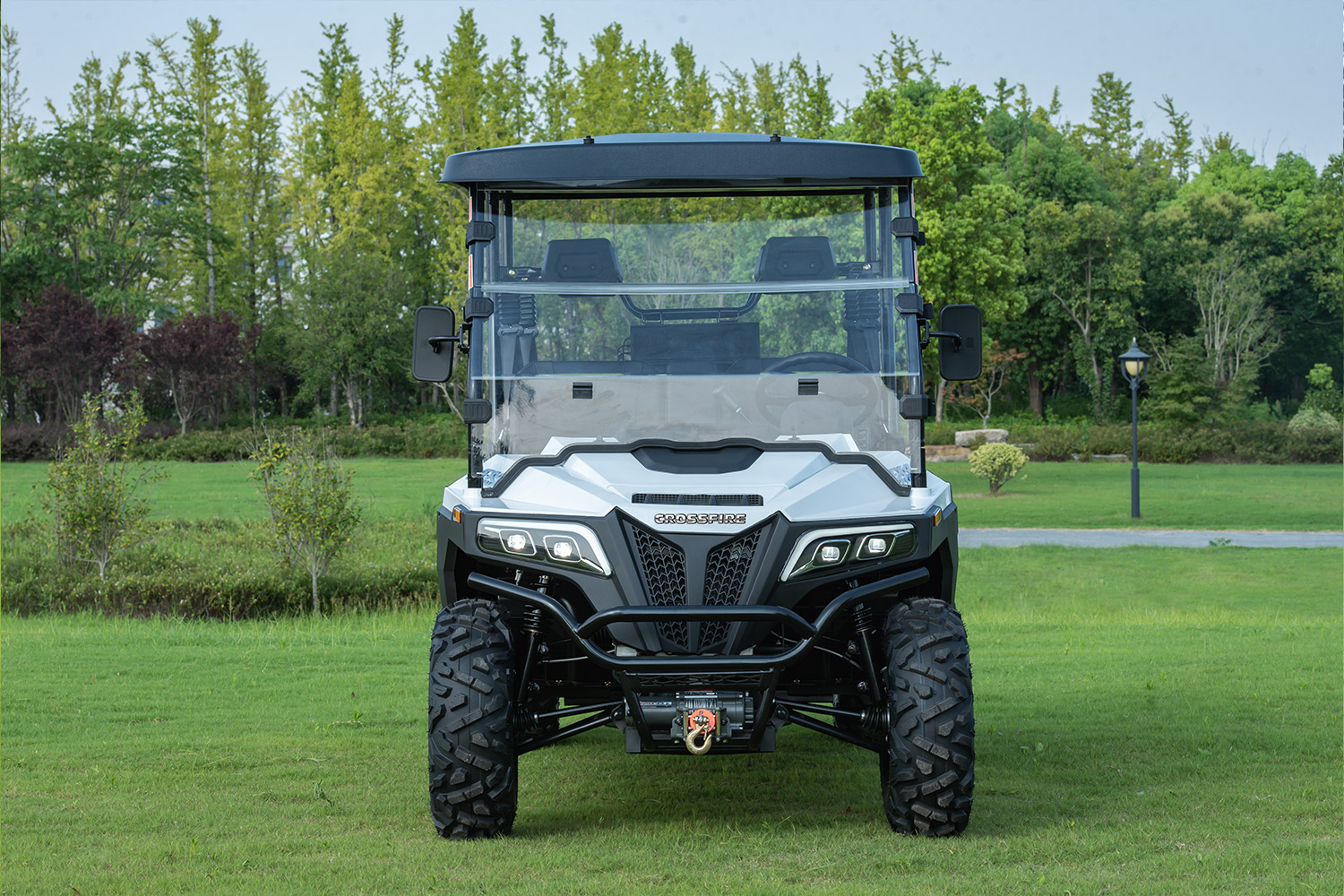

Crossfire E10 Crew Electric UTV 2025

  • Part No :

$19,500.00

Note: All prices are GST inclusive but exclude freight, and assembly charges. Please call your dealer to attain full price.
Categories: , ,
Call 02 4721 3366 for shipping price or pickup from store

Standard Features:

  • Electric 24HP AC motor
  • 72V,140AH Gel batteries+12V 20AH battery
  • 4WD
  • Power steering system
  • H/L speed transmission
  • Rear differential lock

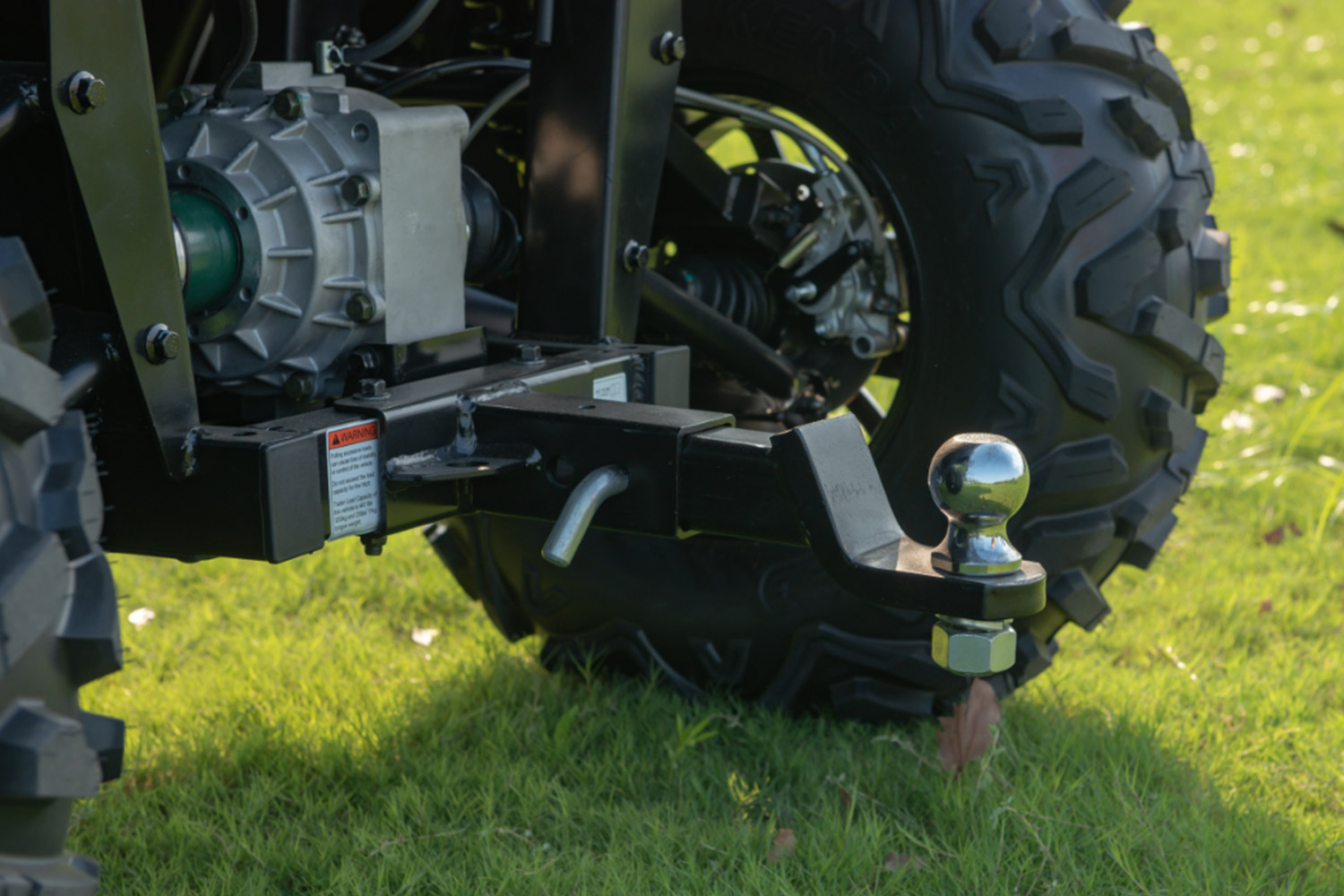

  • Rear tow bar
  • Aluminum wheels
  • Two side view mirror
  • Mesh door
  • Middle cup holder
  • Two side arm rest

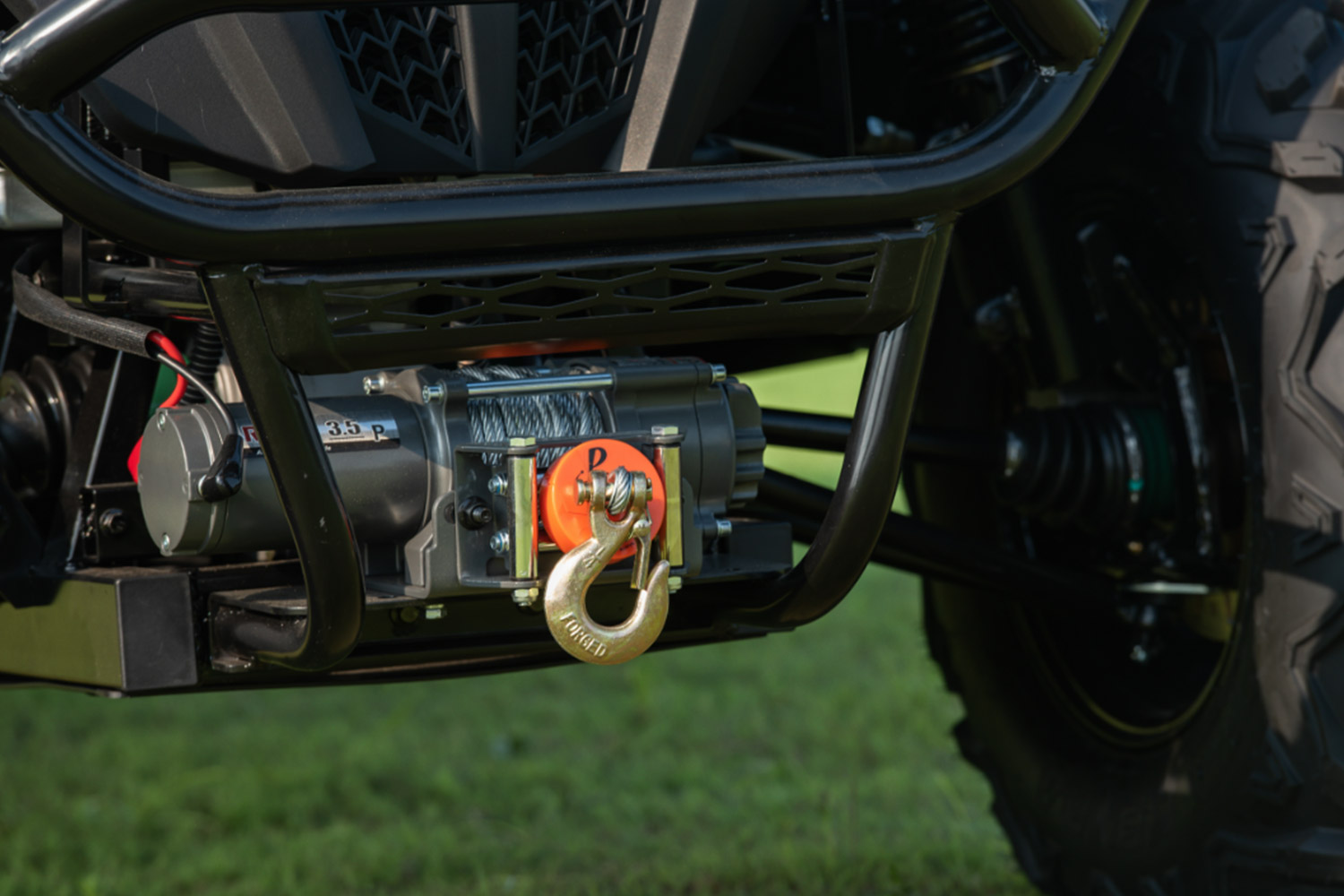

  • Winch
  • Folding windshield

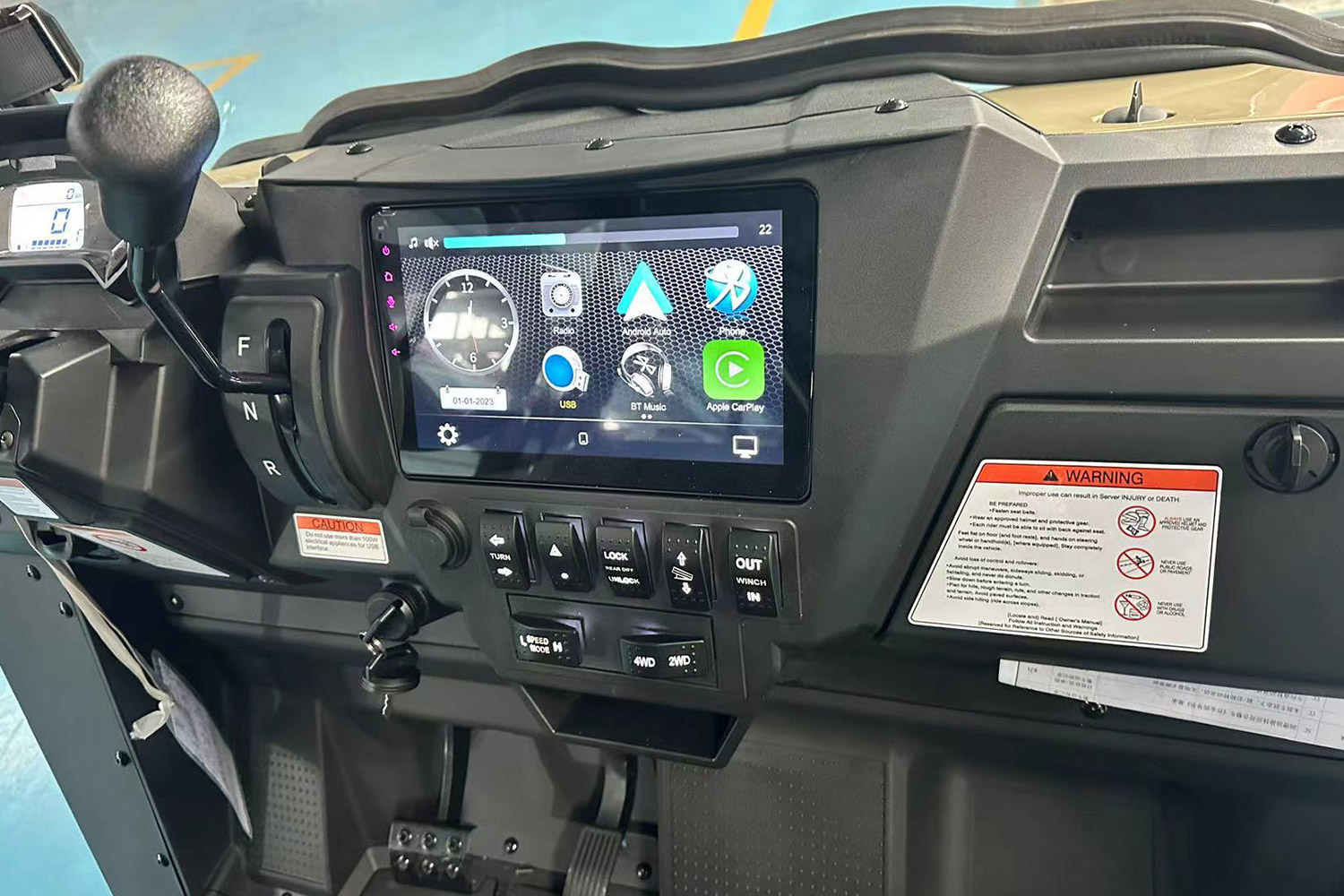

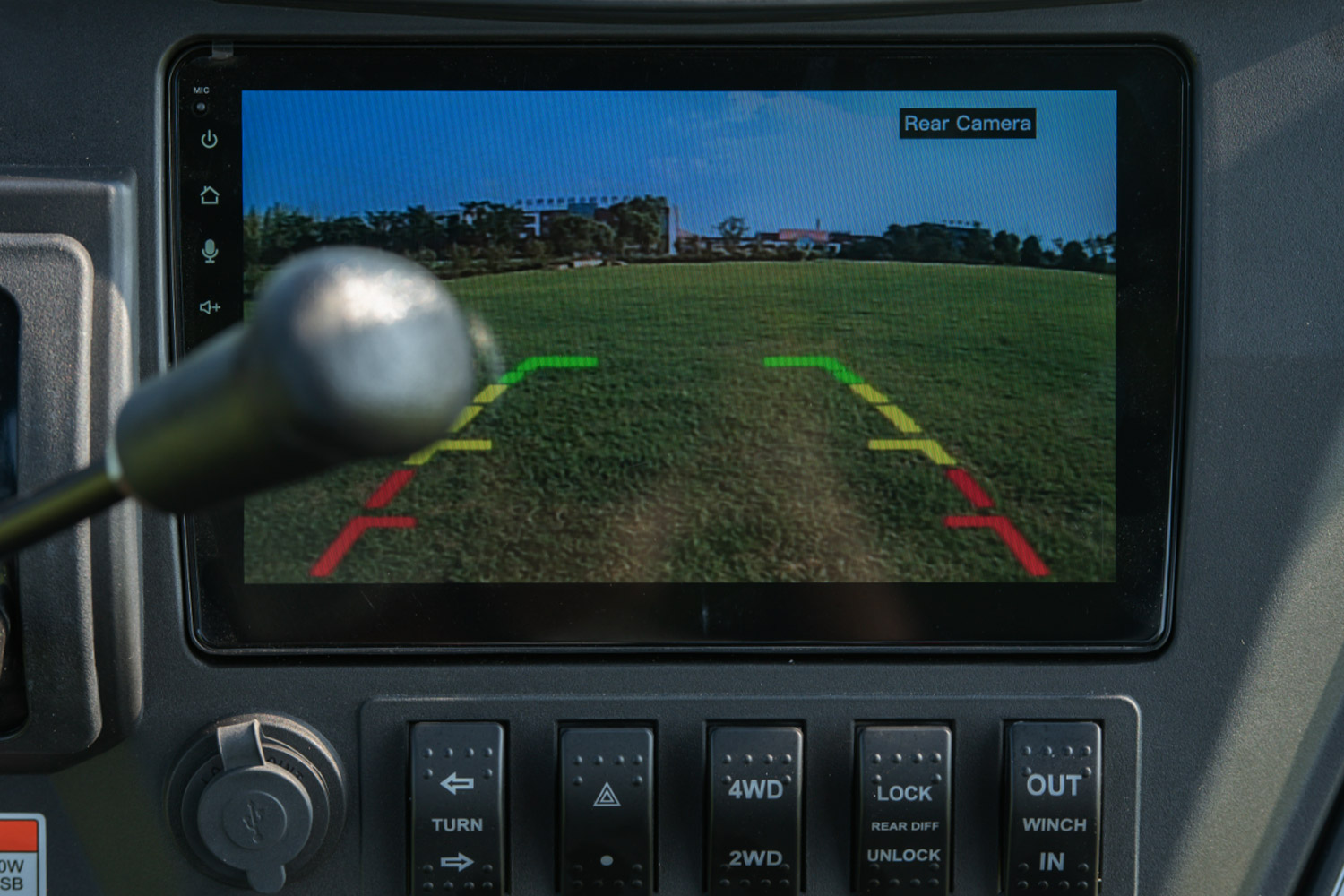

  • 10”  big screen + reverse camera
Specifications
Engine PMSM (Permanent magnet synchronous motor)
Power 24HP
Rated Power 13.5HP
Torque 130N.m
Battery Capacity 72V 140AH*
Battery Type Lead acid battery
Charge Time 9-10h
Charging System ON-Board Charger
Drive Model 4WD, F/N/R, Rear differential with lock
Max Speed 52km/h
Max Range 20-40km*
Dump Bed Maximum Tipping Angle 35°
Dump Bed capacity 100kg
Dump Bed Dimensions 700 × 1190 × 265mm
Suspension front Independent Mcpherson
Suspension rear Independent Double A-Arm
Brakes front Ventilated Hydraulic Disc
Brakes rear Ventilated Hydraulic Disc
Tyres front 25×8-12
Tyres rear 25×10-12
Dimensions (L x W x H) 3316 x 1440 x 1995mm
Wheelbase 2505 mm
Ground clearance 240 mm
Dry weight (With Lead acid batteries) 930kg
Warranty
12 months up to 24 months** ** If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 2 years for vehicles 250cc and up. Please make sure you have proof of services.
Battery Range Disclaimer
Battery Range Disclaimer for the Crossfire E10 Electric UTV: * The estimated range for the Crossfire E10 electric UTV is provided as a guideline only and is based on ideal driving conditions. Actual range may vary due to several factors, including but not limited to:

  1. Terrain: Hilly or rugged terrain can require more energy, thereby reducing overall range.
  2. Driving Habits: Rapid acceleration, high speeds, and frequent stops can reduce the range.
  3. Climate and Weather: Extremely cold or hot temperatures can affect battery performance and capacity. Using the UTV’s heater or air conditioning can also consume additional energy.
  4. Payload and Towing: Carrying heavy loads or towing can reduce the battery’s range.
  5. Battery Age and Health: As with all batteries, capacity can decrease over time or with extensive use, leading to reduced range.
  6. Maintenance: Not maintaining the vehicle according to recommended schedules may impact performance and range.
  7. Software/Firmware: Updates or changes to the UTV’s software/firmware might affect energy consumption and range.
  8. External Factors: Factors such as tire pressure, wind resistance, and road conditions can influence the UTV’s energy consumption.

Users should always plan their trips accordingly and consider these factors when relying on the battery’s range estimate. It’s recommended to maintain a buffer and not let the battery discharge completely. Charging options and locations should be taken into consideration, especially for longer journeys.

** Usable capacity is usually about 30% of the total lead acid battery total capacity. Information sheet is in the support section of website.

Included Accessories
Mesh Doors
Roof and windshield
Towbar
Winch
Aluminium rims
Rear Seating + 2
Two Sided Mirror
Middle Cup Holder
10″ Screen & Reverse Camera
